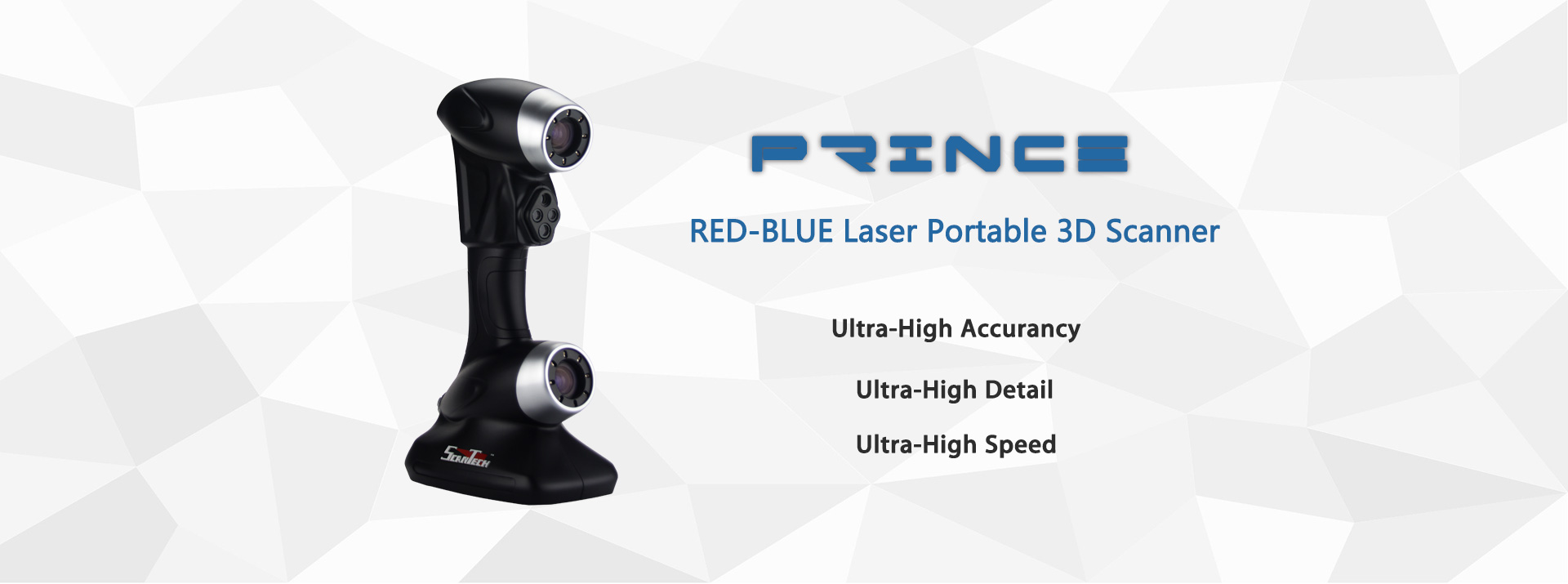

Scantech releases a series of new product-PRINCE. The original two-color laser line work mode considered both the flexible of portable scanner and the perfect detail of photo type scanner. It can scan whether small coins or large aircrafts. PRINCE is the unique choice in 3D detection.
Type Parameter | PRINCE335 | |
Scan Mode | Standard mode R | Hyperfine scan mode B |
Dimensions | 315×160×105 (mm) | |
Weight | 0.95Kg | |
Light source | 3 red crosses laser lines (+ 1 extra red laser line ) | five blue parallel laser lines |
Measurement rate | 265000 measurements/s | 320000 measurements/s |
Camera frame rate | 60fps | 120fps |
Laser class | Class II (eye-safe) | |
Resolution | 0.05mm | 0.02mm |
Accuracy | Up to 0.03mm | Up to 0.03mm |
Volumetric accuracy | 0.020 mm + 0.080 mm/m | 0.010 mm + 0.080 mm/m |
Volumetric accuracy （with MSCAN） | 0.020 mm + 0.025 mm/m | 0.010 mm + 0.025 mm/m |
Stand-off distance | 300mm | 150mm |
Depth of field | 250mm | 100mm |
effective working range | 200mm~450mm | 100mm~200mm |
Output formats | .stl、ply、.xyz、.dae、.fbx、.ma、.obj、.asc、.igs | |
Operating temperature range | -10~40℃ | |
Rapid Calibration | The Scan Viewer (Scan software) has the function of Rapid Calibration. The calibrating time is less than 30 seconds. | |
Connection standard | GigE Vision | |
PRINCE adopts the original band and depth of field technology, which overturns the tradition work mode. Its two-color woke mode can easily deal with all kinds of applications. It also integrates the Scantech’s accumulated graphic algorithm and powerful data processing
The minimum resolution can be 0.01mm, which is five times than those import handheld 3D scanner. It improves the scanning detail greatly. And the blue light mode can totally defeat other scanners
It can be real-time switch between standard mode R and Hyperfine scan mode B. The standard mode R inherited the function from tradition scanner, and the mode B has the same characteristics of those top-level photo type scanner like the excellent details. These two work modes can integrate the scanning data in one file, and both the efficiency and details can be considered.
The camera’s work speed 120fps is twice than other market mainstream scanners.
The 3D scanner HSCAN system has the following applications in the automotive industry: 1 car design and styling Clay modeling stage: to accurately obtain the small proportion of clay model data, such as surface, adhesive tape cutting line, allowing designers to quickly build 3D model of high quality, provide good data base for the milling mechanism to make 1:1 full size model with high accuracy, greatly reduce the model making time. 2 car supplier quality control and quality inspection Processing quality of automotive testing, the implementation of quality control. At the same time, can also provide the qualified suppliers of goods processing quality inspection checks. 3 car making and modification The first to detect finished parts, and the control design for the test or comparison with CAD file to ensure that all parts of the exact cause of manufacturing or correctly identify potential defects. Is the car modification especially some customization, modification parts must be designed to replace the original parts and general, 3D data acquisition original parts by three-dimensional scanning, can ensure that the components can be the perfect replacement parts. 4 auto parts supply For many auto parts manufacturers, 3D data are often unable to get parts. The 3D data parts using HSCN 3D scanner can easily obtain complex model, so as to quickly provide the parts required by the market selling models. Analysis of 5 vehicle test Can the vehicle test results by using HSCAN series 3D scanner (such as fatigue test, impact test etc.) are analyzed, detailed displacement, deformation analysis, put forward specific suggestions for improvement, so as to improve the quality of automobile design. 6 auto parts Manufacture of HSCAN scanner is also widely used in auto parts, such as automobile bumper, dashboard, foot and car seat. 7 auto scan The Hscan scanner can play an important role in the field of vehicle scanning.
For the overall measurement of aircraft and ships and the design and testing of important parts, but also for stress analysis and assembly design.
SCAN scanner is applied to 3D modeling of hydro turbine blade and scale model, which can help to control the quality of production and manufacture. At the same time, HSCAN scanner is also used in power generation equipment repair and life evaluation.
Construction machinery and parts modeling complex, high precision requirements, scanning process there are many difficult to scan dead angle, HSCAN scanner flexible operation, in scanning complex workpiece advantage is particularly obvious.
