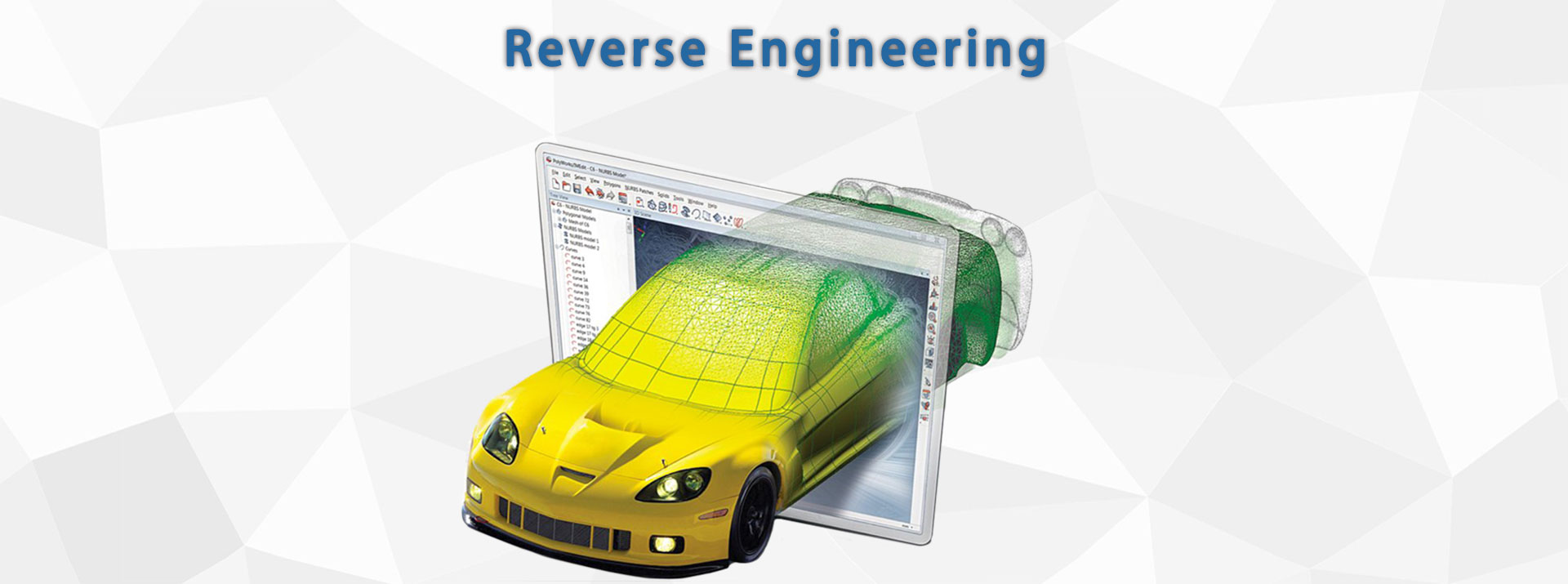

Reverse engineering is a reproduction process of product design technology. It is to say, to do the reverse analysis and obtain some design items such as the process flow, organizational structure, functional characteristics, and technical specifications. That we can produce a product which has similar function but not exactly same. Reverse engineering derive from the hardware analysis of military and commerce field. Its main purpose is to do the product analysis and derived the design principle while it can’t obtain the produce information.
With the improve of modern manufacturing technology and product design, the complex and precision degree makes reverse engineering more difficult. Especially for those complex structure products which has multi-surface, it is almost impossible to do the integrate reverse engineering by hand test.
HSCAN 3d scanner obtain the 3d point cloud data, and corporate with professional software can obtain kinds of shape piece 3d drawings, such as screw surface, stiffener and cavity. Users can also transfer 3d drawing to 2d drawing. Reverse engineering are widely used in product design, manufacturing and cultural relic restore.
The 3D scanner HSCAN system has the following applications in the automotive industry: 1 car design and styling Clay modeling stage: to accurately obtain the small proportion of clay model data, such as surface, adhesive tape cutting line, allowing designers to quickly build 3D model of high quality, provide good data base for the milling mechanism to make 1:1 full size model with high accuracy, greatly reduce the model making time. 2 car supplier quality control and quality inspection Processing quality of automotive testing, the implementation of quality control. At the same time, can also provide the qualified suppliers of goods processing quality inspection checks. 3 car making and modification The first to detect finished parts, and the control design for the test or comparison with CAD file to ensure that all parts of the exact cause of manufacturing or correctly identify potential defects. Is the car modification especially some customization, modification parts must be designed to replace the original parts and general, 3D data acquisition original parts by three-dimensional scanning, can ensure that the components can be the perfect replacement parts. 4 auto parts supply For many auto parts manufacturers, 3D data are often unable to get parts. The 3D data parts using HSCN 3D scanner can easily obtain complex model, so as to quickly provide the parts required by the market selling models. Analysis of 5 vehicle test Can the vehicle test results by using HSCAN series 3D scanner (such as fatigue test, impact test etc.) are analyzed, detailed displacement, deformation analysis, put forward specific suggestions for improvement, so as to improve the quality of automobile design. 6 auto parts Manufacture of HSCAN scanner is also widely used in auto parts, such as automobile bumper, dashboard, foot and car seat. 7 auto scan The Hscan scanner can play an important role in the field of vehicle scanning.
For the overall measurement of aircraft and ships and the design and testing of important parts, but also for stress analysis and assembly design.
SCAN scanner is applied to 3D modeling of hydro turbine blade and scale model, which can help to control the quality of production and manufacture. At the same time, HSCAN scanner is also used in power generation equipment repair and life evaluation.
China is a manufacturing country, in recent years, the mold industry has been the rapid development of technology, more and more high precision mold, mold mold is more and more complex, more and more large size, the need to continuously improve the supporting technology and equipment. HSCAN scanner can be widely used in reverse modeling, mold design, mold inspection and die repair and other aspects. "src="
Construction machinery and parts modeling complex, high precision requirements, scanning process there are many difficult to scan dead angle, HSCAN scanner flexible operation, in scanning complex workpiece advantage is particularly obvious.
HSCAN scanner can be used for the inspection of products, molds and gages to provide inspection standards for product quality improvement. At the same time, HSCAN scanner in scanning large workpiece advantage is particularly obvious. "src="
HSCAN scanner work on the environment and lighting without special requirements, in the open air or even direct sunlight, can also work normally. These features can ensure the HSCAN scanner can be used in almost unlimited cultural relics such as the beautiful stone brick arch 3D modeling. HSCAN scanner can also be applied in wood carving, stone carving and other carving industries, especially the modeling of complex three-dimensional carving. Scanner obtained three-dimensional data can be directly input to the engraving machine, to achieve rapid application from modeling to carving production. "src="
HSCAN scanner can play a role in project research, discipline construction, student skills training and professional laboratory construction. " /upfiles/2-150R61030453c.JPG
